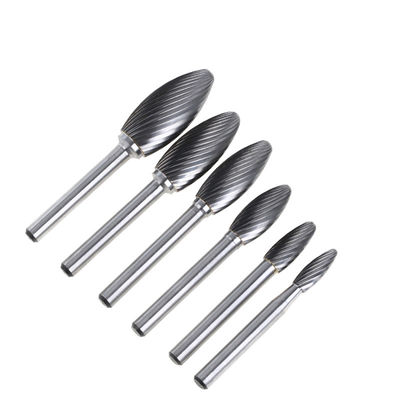

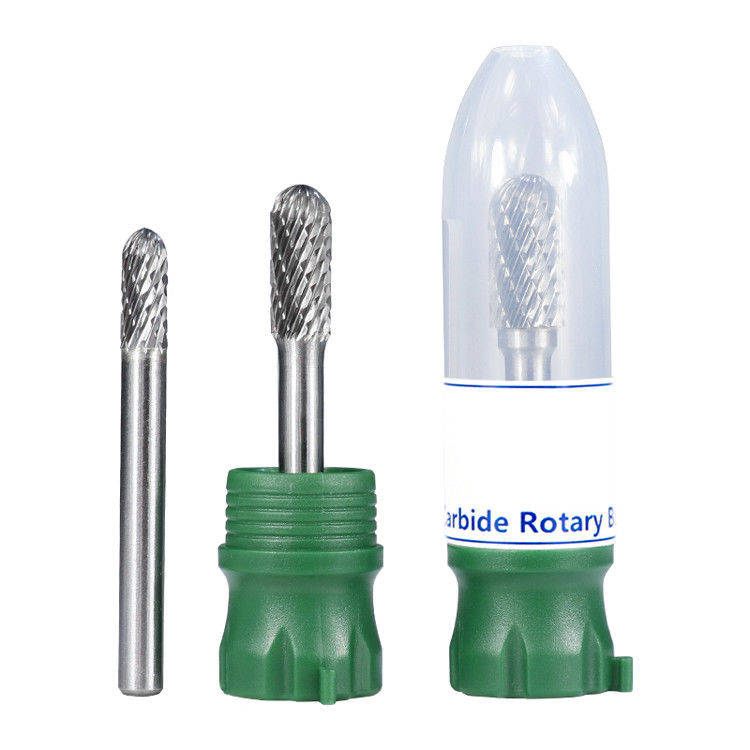

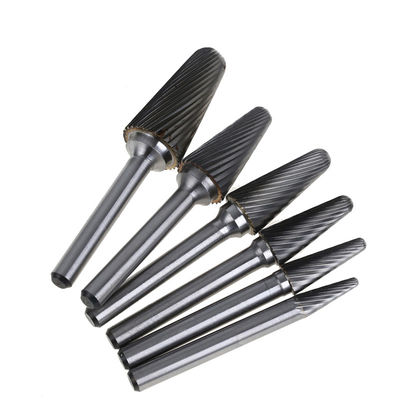

Tungsten carbide burr cutters:
1. Tungsten carbide burs keep on excellent quality
2. More than 100 specifications is developed to satisfy your fully professional requirement on grinding;
3. You can choose 3 different surface color (self-colored & not plated; Silver & nickel plated; Gold & Ti plated);
4. Keep the surface clean (Oil on surface have been got rid of by Ultrasonic);
5. Carbide bur got different shapes, you can choose sizes, grain & length)
For example one item:
Product Description
The Rapid Abrasives Cylindrical Double Cut Carbide Burr is built to grind flat surfaces on metal and non-ferrous metal applications.
Build
Excellent for light to medium material removal.
This solid carbide burr is double cut with a chisel tooth cutting pattern that produces small chips instead of long, sharp slivers which help to finish the metal surfaces faster, eliminates loading and minimizes chatter to provide a smooth cutting experience.
Operation
Moving the burr over the surface gradually will help remove only the material wanted and will help prevent the burr from making divots and unsightly marks.
To extend the life of the burr, only apply enough pressure to let the burr do the work. This eliminates unnecessary wear to the burr.
Technical date
| S.N. | MATERIAL |
| 1a | Steel |
| 1b | Hard steels |
| 2 | Stainless steel |
| 3 | Cast iron |
| 4 | Titanium |
| 5 | Nickel |
| 6 | Copper/Copper alloys |
| 7 | Aluminum |
| 8 | Plastics |
| 9 | Cement |
Guide to running speeds
|
mat nr. MAX RPM |
3mm/0.123" 90,000 |
6mm/0.250" 50,000 |
10mm/0.375" 40,000 |
12mm/0.500" 35,000 |
16mm/0.625' 25,000 |
| 1a | 60,000-80,000 | 35,000-45,000 | 22,500-35,000 | 20,000-30,000 | 15,000-20,000 |
| 1b | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 2 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 3 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 9,000-20,000 |
| 4 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 5 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
| 6 | 45,000-80,000 | 22,500-45,000 | 15,000-35,000 | 11,000-30,000 | 3,000-20,000 |
| 7 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 8 | 30,000-80,000 | 15,000-45,000 | 10,000-35,000 | 7,000-30,000 | 6,000-20,000 |
| 9 | 60,000-80,000 | 30,000-45,000 | 19,000-30,000 | 15,000-22,500 | 12,000-18,000 |
Our factory
ZIGONG(CHENGDU) JOINT CARBIDE CO., LTD is subsidiary of ZIGONG JOINT CARBIDE CO., LTD a professional manufacturer of tungsten carbide rotary tools and carbide material. We have two subsidiary companies, one is in Chengdu city, Sichuan Province and the other one is in Zigong City, Province.
Founded in 2007 at Zigong City, Sichuan Province. In China, we are the exclusive factory who has equipments from raw material to finished tools producing. Including Inclinable Wet Milling, Pressing, Low Pressusring Sintering, Five-axis CNC, Electronic Tool Surface Scanner, Hard and TRS Testor. The main products include Carbide burr/ Carbide burr blank/ Carbide rod, and Carbide nozzle. We exported to North America, Europe, Asia and so on. We've been contributing to make high class cheap products to the world.
