El carburo rotatorio soldado de los ficheros del corte doble remueve las rebabas 50000RPM determinado

100 pedazos
MOQ
El carburo rotatorio soldado de los ficheros del corte doble remueve las rebabas 50000RPM determinado
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Material: Carburo de tungsteno
Soldadura: Soldadura de plata
Sólido/soldado: Soldado
Transporte: El mar/el aire/expresa
tamaño: Tamaño estándar
Forma: Clases de formas
sistema: caso 8pcs/sistema
Certificado: ISO9001: 2008
Alta luz:

El carburo rotatorio de los ficheros remueve las rebabas el sistema

,

Sistema de soldadura de plata de las rebabas del carburo

,

Sistema cilíndrico de las rebabas del carburo 50000RPM

Información básica
Lugar de origen: SICHUAN, CHINA
Nombre de la marca: KTS
Certificación: ISO9001:2008
Número de modelo: A/B/C/D/E/F/G/H/J/K/L/M
Pago y Envío Términos
Detalles de empaquetado: Estuche de plástico
Tiempo de entrega: 7-30 días
Condiciones de pago: T/T, Western Union
Capacidad de la fuente: 250000 pedazos/pedazos por mes
Descripción de producto

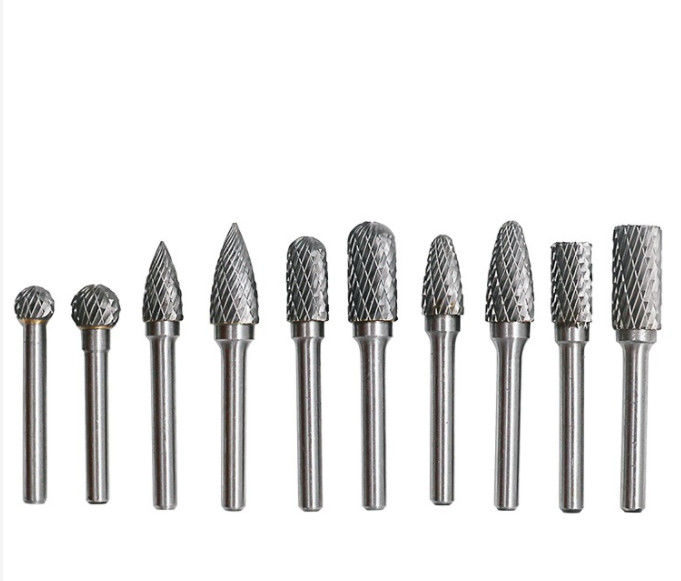

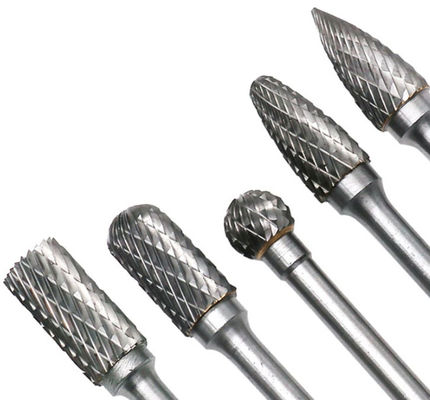

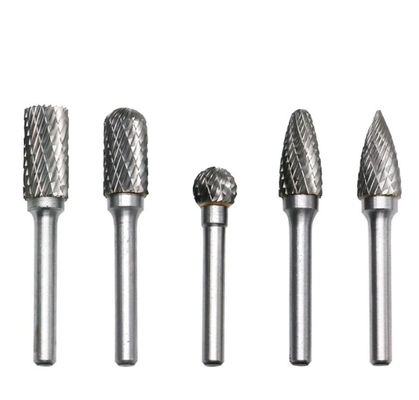

Hand Tools Double Cut Tungsten Carbide Rotary Files Carbide Burrs Set Tungsten Carbide Bur





Product Description


The Rapid Abrasives Cylindrical Double Cut Carbide Burr is built to grind flat surfaces on metal and non-ferrous metal applications.

Build
Excellent for light to medium material removal.

This solid carbide burr is double cut with a chisel tooth cutting pattern that produces small chips instead of long, sharp slivers which help to finish the metal surfaces faster, eliminates loading and minimizes chatter to provide a smooth cutting experience.


Operation


Moving the burr over the surface gradually will help remove only the material wanted and will help prevent the burr from making divots and unsightly marks.

To extend the life of the burr, only apply enough pressure to let the burr do the work. This eliminates unnecessary wear to the burr.



Technical date



S.N. MATERIAL
1a Steel
1b Hard steels
2 Stainless steel
3 Cast iron
4 Titanium
5 Nickel
6 Copper/Copper alloys
7 Aluminum
8 Plastics
9 Cement



Guide to running speeds



mat nr.

MAX RPM

3mm/0.123"

90,000

6mm/0.250"

50,000

10mm/0.375"

40,000

12mm/0.500"

35,000

16mm/0.625'

25,000

1a 60,000-80,000 35,000-45,000 22,500-35,000 20,000-30,000 15,000-20,000
1b 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
2 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
3 45,000-80,000 22,500-45,000 15,000-35,000 11,000-30,000 9,000-20,000
4 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
5 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000
6 45,000-80,000 22,500-45,000 15,000-35,000 11,000-30,000 3,000-20,000
7 30,000-80,000 15,000-45,000 10,000-35,000 7,000-30,000 6,000-20,000
8 30,000-80,000 15,000-45,000 10,000-35,000 7,000-30,000 6,000-20,000
9 60,000-80,000 30,000-45,000 19,000-30,000 15,000-22,500 12,000-18,000



Application:


It can be processed cast iron, cast steel, carbon steel, alloy steel, stainless steel, copper, aluminum and other metals, and marble, jade, bone and other non-metallic. Processing hardness up to HRA85.



Advantage:


1. 10 years professional experience.
2. 100% new material.
3. Be more durable.
4. OEM & ODM Service.
5. All payment terms supported.
6. Fast delivery time & Convenient Transportation



El carburo rotatorio soldado de los ficheros del corte doble remueve las rebabas 50000RPM determinado 0

El carburo rotatorio soldado de los ficheros del corte doble remueve las rebabas 50000RPM determinado 1

El carburo rotatorio soldado de los ficheros del corte doble remueve las rebabas 50000RPM determinado 2

Packing

El carburo rotatorio soldado de los ficheros del corte doble remueve las rebabas 50000RPM determinado 3



About us



Zigong (Chengdu) Cemented Carbide Co., Ltd. is a subsidiary of Zigong Cemented Carbide Co., Ltd., which specializes in the production of cemented carbide rotating tools and cemented carbide materials. We have two branches, one is located in Chengdu City, Sichuan Province, and the other is located in Zigong City, Sichuan Province.



Founded in 2007 in Zigong City, Sichuan Province. In China, we are an exclusive factory with production equipment from raw materials to finished tools. Including inclined wet grinding, pressing, low pressure sintering, five-axis CNC, electronic tool surface scanner, hardness tester and TRS. The main products include cemented carbide end mills / cemented carbide end mill blanks / cemented carbide tool holders and cemented carbide nozzles. We have exported to North America, Europe, Asia, etc. We helped make world-class cheap products.
