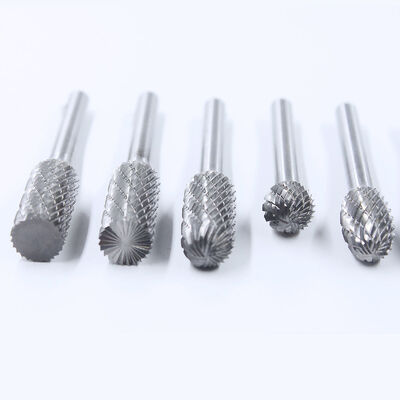

Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring

Double Cut Tungsten Carbide Rotary Burr with 1/4 Inch Shank and 70-90HRA Hardness for Metal Deburring

Nombre De La Marca:	KINGTOOLS
Número De Modelo:	Los datos de los datos de los Estados miembros de la UE que se utilicen para la verificación de los
Cuota De Producción:	100 piezas
Precio:	CN¥8.36-27.79
Condiciones De Pago:	T/T
Capacidad De Suministro:	＞ 300000 piezas por mes

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Sichuan, China

Certificación:

ISO9001-2008

Nombre del producto:

fresa de carburo de tungsteno

Método de soldadura:

Soldadura de plata de fondo plano

Diámetro de la cabeza:

Personalizado

Material:

Carburo de tungsteno 100 % puro.

Diámetro de corte:

1/4" 1/8" 1/12"

Dureza de la cabeza:

70-90HRA

Muestra:

Gratis

Dirección del uso:

Desbarbado, pulido de metales, etc.

Tipo de corte:

Doble corte

Cantidad mínima de pedido:

100 piezas

Detalles de empaquetado:

Caja de plástico o aluminio

Descripción del producto

Tungsten Carbide Rotary Files 6mm Shank Heavy Duty for Steel Aluminum Brass Grinding and Carving High Performance Tools

Tungsten Carbide Rotary Burrs 1/4 Inch Shank for Die Grinder

Sintered Tungsten Carbide Rotary File Metal Deburring 1/4" Shank Polished Burrs OEM Customizable. Factory Direct RTS OEM Tungsten Carbide Rotary Burrs 6mm/1/4" Sintered Carbide Double Cut Polished Surface Metal Deburring Bits.

Product Overview

This professional 10-piece tungsten carbide rotary burr set features 1/8" shank diameter and is designed for precision metal polishing, woodworking, and engraving applications. Made from high-quality tungsten carbide with steel shanks, these burrs deliver exceptional performance and durability.

Technical Specifications

Available Sizes:

Head Diameter: 2.35mm, 3mm, 6mm, 6.35mm, 8mm, 10mm, 12mm, 12.7mm, 14mm, 16mm, 20mm, 25mm
Shank Diameter: 3mm, 6mm, 8mm
Extended lengths available upon request

Tolerances:

Head diameter: +0.3 to +0.5mm
Head cutting part: +0.5 to +1.0mm
Shank diameter: +0 to +0.04mm
Total length: ±0.1mm

Set Configurations:

Available in 3, 5, 6, 8, 10, 12, or 14-piece sets
Packaging options: Aluminum cases or plastic sets
Custom configurations available to meet specific requirements

Applications:

Milling, weld dressing, deburring, cutting holes, surface work, and precision machining

Product Details

10-Piece 2.35*6mm Carbide Burr Set

Product Name: Tungsten Steel Hard Carbide
Cutter Patterns: Double Cut, Single Cut, Aluma Cut
Suitable For: Drilling, metal carving, engraving, polishing

Set Dimensions:

Package Size: 5 * 4 * 0.5 inches
Individual Burr: 2.35*6mm (0.12*0.24 inch approximately)
Total Length: 45-50mm
Cutting Diameter: 1/4"
Shank Length: 35mm
Shank Diameter: 1/8"

Performance Specifications:

Suggested RPM: 25,000-50,000
Maximum RPM: 70,000
Hardness: HRA ≥ 85

Key Features

Processes all types of metal (including hardened steel) and non-metal materials (marble, jade, bone)
Handles materials with hardness up to HRA 85
High production efficiency with reduced labor intensity
Simple and convenient to use
Compatible with pneumatic and electric tools

Important Note: For optimal performance with pneumatic or electric tools, maintain speed between 1,000-3,700 RPM and ensure the tool is firmly clamped.

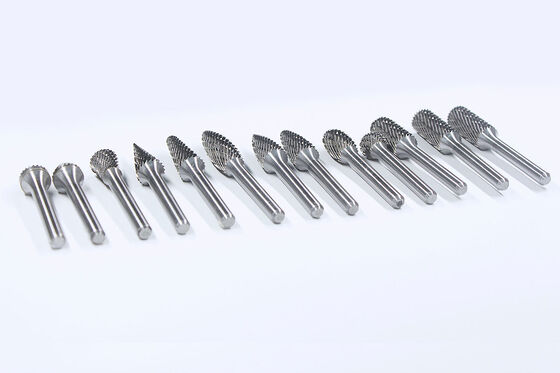

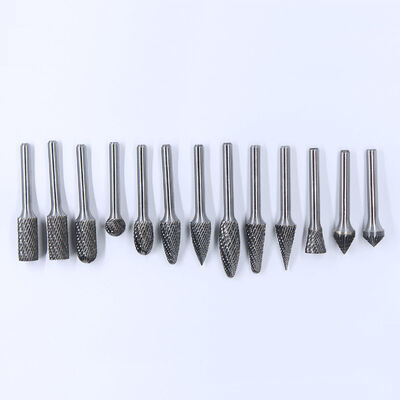

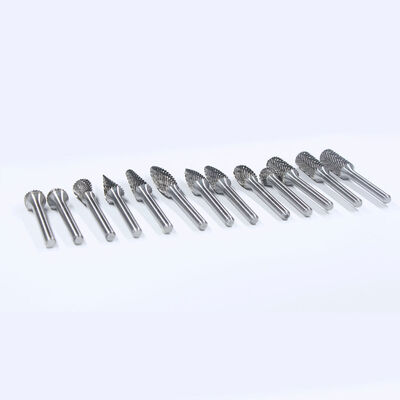

Product Gallery

Burr Types & Specifications

Name	Type	Cut	Material	Product Process	Head Hardness	LOGO
Cylindrical Shape Burr	A	Standard/Single/Double/Aluma	Tungsten Carbide/YG7/TCT	CNC	90-91HRA	available
Cylindrical End Cut Burr	B	Standard/Single/Double/Aluma	Tungsten Carbide/YG7/TCT	CNC	90-91HRA	available
Cylindrical Radius End	C	Standard/Single/Double/Aluma	Tungsten Carbide/YG7/TCT	CNC	90-91HRA	available
Ball Shape Burr	D	Standard/Single/Double/Aluma	Tungsten Carbide/YG7/TCT	CNC	90-91HRA	available
Oval Shape Burr	E	Standard/Single/Double/Aluma	Tungsten Carbide/YG7/TCT	CNC	90-91HRA	available
Tree Shape Radius End	F	Standard/Single/Double/Aluma	Tungsten Carbide/YG7/TCT	CNC	90-91HRA	available
Tree Pointed Ends Burr	G	Standard/Single/Double/Aluma	Tungsten Carbide/YG7/TCT	CNC	90-91HRA	available
Flame Shape Burr	H	Standard/Single/Double/Aluma	Tungsten Carbide/YG7/TCT	CNC	90-91HRA	available
Cone Shape With 60°	J	Standard/Single/Double/Aluma	Tungsten Carbide/YG7/TCT	CNC	90-91HRA	available
Cone Shape With 90°	K	Standard/Single/Double/Aluma	Tungsten Carbide/YG7/TCT	CNC	90-91HRA	available
Taper Radius End Burr	L	Standard/Single/Double/Aluma	Tungsten Carbide/YG7/TCT	CNC	90-91HRA	available
Cone Burr	M	Standard/Single/Double/Aluma	Tungsten Carbide/YG7/TCT	CNC	90-91HRA	available
Inverted Cone Burr	N	Standard/Single/Double/Aluma	Tungsten Carbide/YG7/TCT	CNC	90-91HRA	available
Disc Type Burr	W	Standard/Single/Double/Aluma	Tungsten Carbide/YG7/TCT	CNC	90-91HRA	available

Tungsten Carbide Grades

China Grade	ISO Grade	Density (g/cm³)	Hardness (HRA)	TRS (Mpa)
YG6	K20	14.95	91	1800
YG6X	K10	14.95	92	1800
YKM6A	K10	14.95	92.5	1800
YG8	K30	14.7-14.8	90	1950
YT5	P30	13	90.8	1900
YT14	P10-20	11.5	91.5	1500
YT15	P10-20	11.3	91.8	1450
YW1	M10-20	13.1	91.5	1600
YW2	M10-20	13.1	91	1600
YS25	P25	12.8	91.5	1900
YC30S	P30	12.8	91	2000

Recommended Operating Speeds

Burr Size	Recommended RPM
1.6mm or 1/16"	25,000 - 35,000
2.35mm or 3/32"	25,000 - 35,000
3mm or 1/8"	25,000 - 35,000
6mm or 1/4"	25,000 - 35,000
12mm or 1/2"	25,000 - 35,000
16mm or 5/8"	25,000 - 35,000

Cutting Pattern Guide

Single-cut burs: Ideal for general purpose work with good material removal
Double-cut burs: Produce smaller chips for greater control on stainless steels and ferrous materials
Aluma-cut burs: Wide flute design prevents loading on nonferrous and soft materials
Standard-cut burs: Widely used for fine finishing applications

Factory Direct Tungsten Carbide Rotary Burr with Double Cut and 1/4" Cutting Diameter for Precision Metal Deburring and Polished Surface Finish
